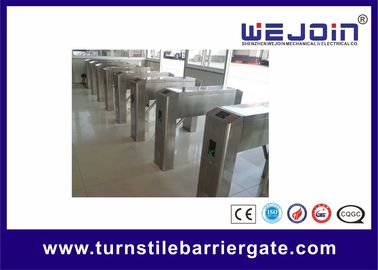

80KG Durable security Tripod Turnstile Gate auto barrier gate system for Library , Hospital

اطلاعات پایه
Place of Origin: Shenzhen,China
نام تجاری: WEJOIN
گواهی: ISO 9001:2008,CE,
Model Number: WJTS110
Minimum Order Quantity: 1set
قیمت: negotiation
Packaging Details: Export Wooden Case
Delivery Time: 3-15 days depending on the quantity
Payment Terms: T/T,Western Union
Supply Ability: 1,000 set/month
اطلاعات تکمیلی
نام: تورنستیله سه پایه موتور محرکه: موتور DC
منبع تغذیه: 10 ± 220 ولت، 10 ± 110 ولت سرعت حمل و نقل: 30 تا 40 نفر در دقیقه
قدرت نامی: 36 وات جهت چرخش: جهت دوگانه
برجسته:

دروازه‌های ورودی امنیتی

,

سیستم‌های امنیتی دروازه ورودی

,

دروازه سه‌پایه بیمارستان کتابخانه


توضیحات محصول



80KG Durable security Turnstile auto barrier gate system for Library , Hospital





Quick Detail:





  1. Name;Automatic Tripod turnstile
  2. Power Supply:220V±10%, 110V±10%
  3. Application: Resident area
  4. Frequency:50/60HZ
  5. Transit speed:30~40 person/min
  6. Housing material:Stainless Steel 304/ Iron with Powder
  7. Rotating Direction:Double Direction
  8. Driving Motor:DC Motor





Function and Features:





1.All the functions can be realized in one integration machine and can be controlled and managed by the computer in the far distance
2.All the system runs stable with little noise and no mechanical impact
3.Special wheel mechanism is used here to realize the function of fixing and also unfixing all the parts of the turnstile
4.Several ways of working molds can be chosen at your request
5.It can self-check and alarm which will be make it convenient to use
6.Beam falling and lifting can be controlled in far distance so to satisfy the special requirement of the users and the request of fire protection
7.1.The arm will auto drop whne power off, which matches the requirements of the fire prevention,and it will auto reset and come up when power on,and the set time can be changed according to your request
8.It has the standard electrical interface which can be connected with various kinds of reader and writer equipment
9.The working molds can be set by the buttons in the main control board:two-way passing or one-way passing and the other direction prohibited.
10.The number of the persons who have passed by can be counted automatically which can also be displayed in LED
11.Direction-guide lights are in the turnstile to tell you which direction can go or which cannot
12.You can set the function with or without card-reading memory according to your requirement
13.The number of the persons who can pass by the turnstile can be set to meet the requirement of some special occasions
14.Boom can be lifted and fall when power-off





Specifications:





Model
Item
WJTS122 WJTS110 WJTS112 WJTS111
Manual, Semi or Full-automatic Full-automatic
Material of Housing 304 Stainless Steel Iron with Powder
Thickness of Housing 1.50mm
Dimension of Housing
(L×W×H mm)
420×380×1000 1235×280×1000 1235×280×1000 420×380×1050
Length of Pole (out of housing) 490mm
Net Weight 50kg 70kg 70kg 45kg
Max Load-bearing of Pole 80kg
Driving Force of Pole 3KG
Rotating Direction Double Direction
Working Environment Indoor / Outdoor (Shelter)
Input Interface DC12V electrical leveel signal, more than 100ms,
or DC12V impulse signal driveing current, more 10mA
Working Voltage of Motor DC12V
Rated Power 50W
Driving Motor DC Motor
Power Supply 220V±10%, 110V±10%
Transit Speed 30~40 persons/min
Working Temperature -40°C~55°C
Frequency 50/60HZ
Relative Humidity ≤95%





Applications:





The tripod turnstiles can be used in places such as restaurants, BRT station,upscale club,hotels, office buildings, museums, gyms, clubs, metros, bus stations, high class communities, intelligent buildings, hotels, subway stations ,school,bank and other high level venues, ect.





After-sale Service:





1 year warranty

Lifetime Service with charge accordingly





Detail Preview:





  1. Barrier Gate core:delicate and small
  2. Arm:concise and convient
  3. High-technology control board
  4. Orderly and tidy workshop
  5. Safer packing

80KG Durable security Tripod Turnstile Gate auto barrier gate system for Library , Hospital 0
