Automatic Vehicle Barrier Gate For Bus Sation with Anti-bumping Function and Optional Color

اطلاعات پایه
Place of Origin: China
نام تجاری: WEJOIN
گواهی: CE, ISO,
Model Number: WJDZ701
Minimum Order Quantity: 1 unit
قیمت: negotiation
Packaging Details: Carton box
Delivery Time: 3~7 working days
Payment Terms: T/T, Western Union
Supply Ability: 5000 units/month
اطلاعات تکمیلی
Color: Yellow Speed: 3s,6s
Max Boom Length: 6m Delivery: Around 5 working days
Motor Material: Aluminum Alloy Standard Package: Carton
برجسته:

,

,

electric barrier gate


توضیحات محصول

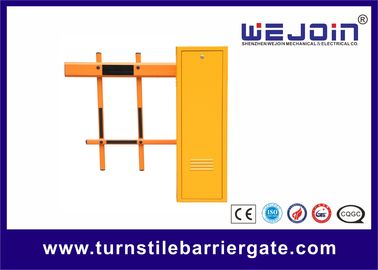

Automatic Vehicle Barrier Gate For Bus Sation with Anti-bumping Function and Optional Color





Quick Detail:





Name: Bi-directional Barrier Gate

Application : Parking System

Speed:3/6 second

Feature: Manual release

Rated Power:120W

Certificate:CE, ISO,

Net Weight:39KG

Gross Weight:44KG

Voltage:AC220V, AC110V





Description:





Model Selection and Differences





Model Boom Shape Max Boom Length Speed
WJDZ70116 Straight boom 4.5m 6 seconds
WJDZ70113 Straight boom 4m 3 seconds
WJDZ70126 90 degree, Articulated boom 4m 6 seconds
WJDZ70123 90 degree, Articulated boom 3m 3 seconds
WJDZ70136 180 degree, Articulated boom 4m 6 seconds
WJDZ70133 180 degree, Articulated boom 3m 3 seconds
WJDZ70146 Two-level, fence boom 3.5m 6 seconds
WJDZ70156 Three-level, fence boom 3m 6 seconds





Functions & Features:





1. Advanced manual release
2. Boom can rise and fall on left/right side by setting on the same machine
3. No need to change the balance spring when changing the booms
4. Adopts the 3rd generation WEJOIN machine core
5. Supports the infrared photocell for anti-bumping function (optional)
6. Supports the external and internal vehicle loop detector (optional)
7. Auto closing
8. RS485 communication module (optional)
9. Thermal radiates rapidly, no thermal protection
10. Die-cast aluminum alloy machine core and advanced double-stage driving motor effectively solve the problem of mechanism block up
11. Special art and craft makes out the most modernized and fashionable housing
12. Safety photo electricity limit switch

13.  Auto warming-up, suitable for cold environment





Applications:





Barrier Gate with aluminum alloy housing screen uses the third generation motor. It is stable and has long service life performance, running one million times. And the barrier can work with parking system very well, and can be used in door and outdoor.





Specifications





Model WJDZ701
Working Temperature -35℃~+75℃
Voltage 220V±10%, 110V±10%, 50/60HZ
Rated power 120W
Relative humidity ≤90%
Remote control distance ≥30m
Net weight 35kgs
Speed 3S, 6S
Max boom length 6 meters





Why to choose WEJOIN Bi-directional Barrier Gate?





1. Barrier Gate with aluminum alloy housing is suitable for vehicle flux control of the access. This barrier gate is unique for its good looking, and full molding design for all main parts. Die-cast by aluminum alloy, the barrier gate is anticorrosive. Compact design of machine core adopts big reduction ratio technology, realizes machine core more compact and smart looking. Unique transformed boom can rise and fall on left/right sides under the direction. Just need one standard of balance spring can suit to all length of the booms, no need to change the spring.

2. Barrier Gate with aluminum alloy housing screen uses the third generation motor. It is stable and has long service life performance, running one million times.

3. Special barrier core makes its installation direction adjustable. Also The barrier works well with the barrier can be changed booms with different length, without changing its spring. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles. Manual release device can operate the barrier when power failure.

4. WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.





Communication with customers





Q: What's WEJOIN monthly production capacity for barrier gate?

A: 5000 units.



Q: As for the over-heating problem of barrier gate

A: WEJOIN barrier gate has motor cooling fan which can solve the problem of over heating-protection. WJDZ601 and WJDZ701 don't have motor cooling fan, but the aluminum alloy housing of WJDZ601 can make the heat radiate quickly, and there’re shutters on the housing to let wind in.
