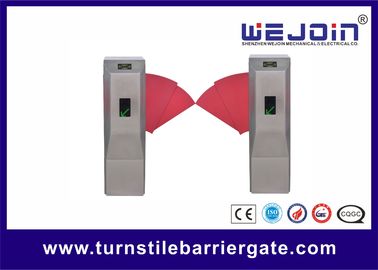

Flap Barrier Gate With Widen Flap and Safe Internal Construction Design For Access Control System

اطلاعات پایه
Place of Origin: China
نام تجاری: WEJOIN
گواهی: ISO
Model Number: WJTY311
Minimum Order Quantity: 2pcs
قیمت: Negotiation
Packaging Details: Wooden box
Delivery Time: 10-30 days
Payment Terms: T/T
Supply Ability: 50PCS/week
اطلاعات تکمیلی
Widen Wing: Yes Customized Product: Yes
Running Time: 1s Good Material: 304 stainless steel
Have Logo: Optional Bidirection Access: Yes
برجسته:

سیستم های امنیتی پایه گردان,

,

speed gate systems


توضیحات محصول



Flap Barrier Gate With Widen Flap and Safe Internal Construction Design For Access Control System



Company introduction:



Shenzhen Wejoin Machinery & Electrical Technology Co. Ltd, was established in March 2004. it is the first high-tech enterprise engaged in research and development, manufacture and sales of intelligent access control products. Wejoin was awarded Brand Business Enterprise of Guangdong province, enterprise with independent innovation product of Shenzhen city, Longgang district first 100 Excellent Performance training pilot enterprise. As one of the most potential branding enterprise in Shenzhen, one of the largest manufactures in gate controlling products, barrier gates, and passageway barrier, well known manufacturer in the world, the key supplier for the access control and management. Our main product include automatic barrier, passageway barrier gate operators, etc.



Feature and Function:



1. A compact electric and mechanical design with unique drive which ensure product durability and silent operation, and its self-lock mechanism can also well protect the access control security.



2.WEJOIN flap barrier barriers have automatic detection for malfunctions, which will be convenient for customer to maintain and operate.



3.WEJOIN flap barrier barriers have input interface that are available for dry contact and switch signal connections. So that customers can integrate the flap barrier with different system, like card reader, ticket system, token system etc.





4.WEJOIN flap barrier barriers have auto delay closing function, after the flaps open if no pedestrian passes in a fixed time, the system will cancel the order and the auto-delay closing time is adjustable. The press button 1 and button 2 can adjust the delay closing time.





5.WEJOIN flap barrier barriers can be integrated with fire control device, which allow the release on emergency for security consideration.



6.WEJOIN flap barrier barriers have audible and visual alarm in case of unauthorized access, which can strengthen the entrance security.





7. Infrared photocells for safety access.





Description:



Intelligent flap barrier is a brand-new product of WEJOIN company. Flap barrier, as the upgraded version of the tripod turnstile and swing barrier, is a hi-tech product for pedestrian access control. WEJOIN flap barrier has features of precise craftsmanship, comprehensive functions and high technology. It has application in high class communities, intelligent buildings, hotels, subway stations and other high level venues.

Flap barrier is the combination of machinery, electronic, CPU control and variety of personal authentication identification technology. IC card, ID card, code bar, and fingerprint identification unit are compatible with the flap barrier. Choosing different identification equipment and applying reliable security protection devices, alarm devices, direction indicator to realize the intelligent management of access control is comply with the fire safety requirements.

Flap barrier motor can be classified into single motor and double motors. The single one is used for single lane and the double one is used for multi-lanes.





Specifications:



Model WJTY311
Cabinet dimension 1400mm(L)×305mm(W)×1020mm(H)
Stretching-out flap length 440mm
The max lane width 900mm
Cabinet material 304 stainless steel & aluminum alloy
Power supply AC220V±15%, AC110V±15% 50/60Hz
Motor voltage DC24V (brush motor)
Protect grade IP32
Max flow rate 30~40 people per minute
Flap opening/closing time 0.5s ~ 1s
reset time when power on 2s
Access device input voltage dry contact
working environment outdoors (with shelter) and indoors.
working temperature -25°C ~ +50°C
