LED Parking Barrier Gate with LED Boom and Remote Controller For Parking System

اطلاعات پایه
Place of Origin: China
نام تجاری: WEJOIN
گواهی: CE, ISO,
Model Number: WJDZ620
Minimum Order Quantity: 1set
قیمت: negotiation
Packaging Details: Export Wooden Case
Delivery Time: 3-15 days depending on the quantity
Payment Terms: T/T, Western Union
Supply Ability: 1, 000 set/month
اطلاعات تکمیلی
Material: Iron with powder Rated power: 120W
Installation: Left / Right Boom Type: 2580 Squared Boom
Certificate: CE/ISO/ Speed: 3s/6s
برجسته:

,

,

car barrier gate


توضیحات محصول

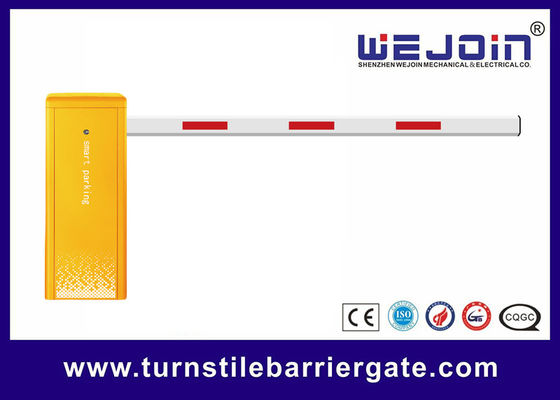

LED Parking Barrier Gate with LED Boom and Remote Controller For Parking System

Model Selection and Differences

Model
Item

WJDZ12013WJDZ12016
Opening Time3S6S
Boom TypeStraight, square-shaped
Boom Length3M4M
Voltage110V/220V
Motor/PowerAC/120W
Working Temperature-35℃ - 75℃
Protection GradeIP44
Remote Control Distance30M~100M


Specifications


ModelWJDZ120
Working Temperature-40℃~+75℃
Voltage220V±10%, 110V±10%, 50/60HZ
Rated power120W
Relative humidity≤90%
Remote control distance≥30m
Net weight45kgs
Speed3S, 6S
Max boom length6 meters


Functions & Features
1. Manual release device to operate the barrier when power failure
2. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation
3. Motor cooling fan to avoid the over-heating possibility
4. Automatic reversing when the barrier boom meets the obstruction
5. Supports the infrared photocell for anti-bumping function (optional)
6. Supports the external and internal vehicle loop detector (optional)
7. Auto closing
8. RS485 communication module (optional)
9. Thermal radiates rapidly, no thermal protection
10. Die-cast aluminum alloy machine core and advanced double-stage driving motor effectively solve the problem of mechanism block up
11. Special art and craft makes out the most modernized and fashionable housing
12. Safety photo electricity limit switch
13. Boom with LED light (color is changeable with remote control)
14. Cabinet with traffic light
15. Remote Control Frequency: 315MHz, 418MHz, 433MHz


Applications

Barrier Gate with LED boom is installed with LED boom, and traffic light on the housing. When the boom rises up, the light turns green; when the boom falls down, the light turns red. Beside the LED, the boom is also installed with rubber below, which not only indicates the transit situation, but also protect vehicle from hitting.


Communication with customers

Q: What's WEJOIN monthly production capacity for barrier gate?
A: 3000 units.

Q: As for the over-heating problem of barrier gate
A: WEJOIN barrier gate has motor cooling fan which can solve the problem of over heating-protection. WJDZ601 and WJDZ701 don't have motor cooling fan, but the aluminum alloy housing of WJDZ601 can make the heat radiate quickly, and there’re shutters on the housing to let wind in.

Q: Sometimes, Why the barrier boom would open automatically?
A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.
Q: What’s the remote control distance?
A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters.

Why to choose WEJOIN Bi-directional Barrier Gate?

1. Barrier Gate with LED boom is installed with LED boom, and traffic light on the housing. When the boom rises up, the light turns green; when the boom falls down, the light turns red. Beside the LED, the boom is also installed with rubber below, which not only indicates the transit situation, but also protect vehicle from hitting.
2. Barrier Gate with LED boom uses the third generation motor. It is stable and has long service life performance, running one million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.
3. Special barrier core makes its installation direction adjustable. Also he barrier works well with the barrier can be changed booms with different length, without changing its spring. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles. Manual release device can operate the barrier when power failure.
4. WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.

Quality Control Preview

LED Parking Barrier Gate with LED Boom and Remote Controller For Parking System 0
