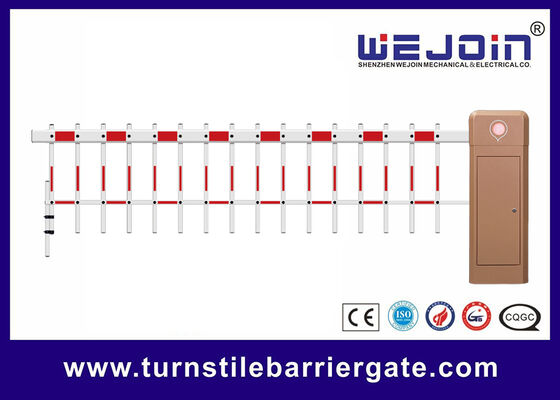

Professional Manufacture 100% Duty Cycle 4.5m Two Fence Arm for Blocking Car and People

50 ست
MOQ
قابل مذاکره
قیمت
Professional Manufacture 100% Duty Cycle 4.5m Two Fence Arm for Blocking Car and People
امکانات گالری توضیحات محصول درخواست نقل قول
امکانات
مشخصات
نوع بوم: بوم مستقیم / فلودینگ بوم
ولتاژ: AC 110V-265V
طول بوم: حداکثر 6 میلیون (سفارشی)
گارانتی: 2 سال
رنگ مسکن: طلا
برنامه: محوطه پارکینگ
برجسته کردن:

automatic barrier gate with 100% duty cycle,4.5m fence arm for blocking cars,professional barrier gate for vehicle control

,

4.5m fence arm for blocking cars

,

professional barrier gate for vehicle control

اطلاعات اولیه
محل منبع: چین
نام تجاری: WEJOIN
گواهی: CE ISO
شماره مدل: CB01VF-I
پرداخت
جزئیات بسته بندی: کارتن
زمان تحویل: 15 روز کاری پس از پرداخت دریافت
شرایط پرداخت: T/T
قابلیت ارائه: 10000 مجموعه در ماه
توضیحات محصول

Professional Manufacture 100% Duty Cycle 4.5m Two Fence Arm for Blocking Car and People


Boom Barrier Gate Functions & Features
  1. Motor Drive System: Features a DC variable frequency control motor paired with a robust connecting rod transmission mechanism and a balancing spring system. This design ensures exceptionally stable, smooth, and reliable operation. Key components are engineered for longevity, with the motor rated for up to 6 million cycles and the balance spring for 500,000 cycles.

  2. Advanced Safety - Obstacle Detection: Incorporates an intelligent auto-reversing function upon obstacle contact. If the boom encounters any obstruction during its downward closing motion, it will immediately and automatically reverse direction to prevent damage and enhance safety.

  3. Integrated Safety & Power: Designed to seamlessly support external safety accessories, including radar detectors, loop detectors, and infrared photoelectric beams for comprehensive anti-crashing protection. For added convenience, it features a built-in DC 12V power output, which can be used to directly power external devices like radar sensors, simplifying installation.

  4. Communication & Connectivity: Offers flexible communication options. It supports standard RS485 communication for integration into centralized control systems. Additionally, it allows for RS485 off-line connection, enabling the linking of multiple barriers for synchronized operation without a central controller.


Barrier Gate Controller Interface Explanations

Item

Explanation

Anti-smashing Interface

Infrared Photocell: boom will lift up when short circuiting “Infrared photocell interface” and “GND”  during boom down.

Loop Detector: boom will lift up when short circuiting “loop detector interface” and “GND” during boom down; in up limit position, boom will fall down automatically after these two interfaces disconnected.

RS485 Communication Interface

It is used for controlling the barrier gate or checking the status of the barrier gate by computer or system; also used for online controlling the paired barrier gates synchronously.

DC12V Power Output

Provide 1A current output, available for radar or small light strips.


Vehicle Barrier Gate Technical Data
  • Model: WJCB01VF-H, WJCB01VF-I

  • Running Speed: 1-4S, 2-6S

  • Boom Type: Straight, 90° Folding, 180° Folding, 2 Fence, 3 Fence

  • Max Boom Length: 8M

  • Input Voltage: AC100-265V

  • Frequency: 50/60HZ

  • Motor Voltage: DC24V

  • Enclosure Rating: IP54

  • Working Temperature: -30°C ~ +70°C

  • MTBF: 6,000,000 times

  • Traffic Flow Application: 24 hours uninterrupted operation

  • Max Motor Power: 240W, 180W

  • Max Motor Speed: 500r/min, 360r/min

  • Max Torque: 280N.m, 320N.m
