DC24V Brushless Motor Barrier Gate with Auto-Reversing

1 set
MOQ
negociate
قیمت
DC24V Brushless Motor Barrier Gate with Auto-Reversing
امکانات گالری توضیحات محصول درخواست نقل قول
امکانات
مشخصات
operating time: 0.6s~4s
boom type: Straight Round Arm
housing material: steel with powder coating
Color: Yellow
Application: parking lot
Warranty: 2 Year
برجسته کردن:

DC24V brushless motor barrier gate,auto-reversing toll gate barrier,brushless motor toll gate

,

auto-reversing toll gate barrier

,

brushless motor toll gate
اطلاعات اولیه
Place of Origin: CHINA
نام تجاری: WEJOIN
گواهی: CE ISO SGS
Model Number: DZJ-S
پرداخت
Packaging Details: carton
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 10000 sets/month
توضیحات محصول

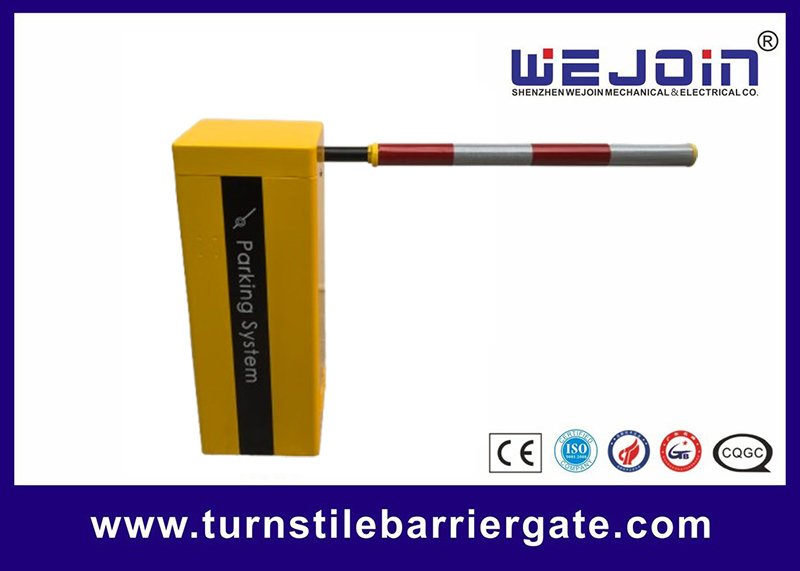

DC24V Brushless Motor Barrier Gate Auto-reversing on Obstruction


Boom Barrier Basic Features:

1. Motor drive, with connecting rod transmission mechanism, balance spring, stable and reliable operation, motor life up to 6 million times or more, spring life of 1 million times.

2. All series are equipped with rebound function, when the rod is blocked in the process of falling, it will rebound automatically.

3. Support external radar, coil, infrared anti-smash function, built-in DC 12V power output, can be used for external radar power supply.

4. Support RS485 communication or RS485 off-line connection.

5. DC24V power supply is optional.



Barrier Gate Technical Data

1. Working temperature (motor): -35℃~ + 70℃

2. Power supply input voltage: AC100~265V

3. Controller input voltage: DC24V±10%, 10A

4. Motor power: 240W

5. Relative Humidity: 30%~80%, No condensation

6. Distance of remote control: open and undisturbed, L≤50M

7. Running Speed: 0.6~4 seconds adjustable

8. MTBF: 6,000,000 times



Intelligent Barrier Types:

Type

Description (Boom Length=L, Meters=M, Seconds=S)

Barrier gate with round carbon fiber boom

L≤3M, up speed 0.6S.

L≤3.5M, up speed 0.9S.

L≤4M, up speed 1.6S.

Barrier gate with round aluminum boom

L≤3M, up speed 0.9S.

L≤3.5M, up speed 1.5S.

L≤4M , up speed 2S.

L≤4.5M , up speed 3S.



Common Malfunctions and Solutions

Malfunction Phenomenon:The opening speed is fast at the first power-on

Possible Causes :The power-on self-learning speed of P-13 is too fast.

Solution:Reduce 1-XX and 2-XX of P-13.



Malfunction Phenomenon:When manually finding the limit, the barrier can’t open or close to limit position, and the buzzer alarms

Possible Causes :The power-on self-learning speed of P-13 is too slow.

Solution:Increase 1-XX and 2-XX of P-13, and try again.
