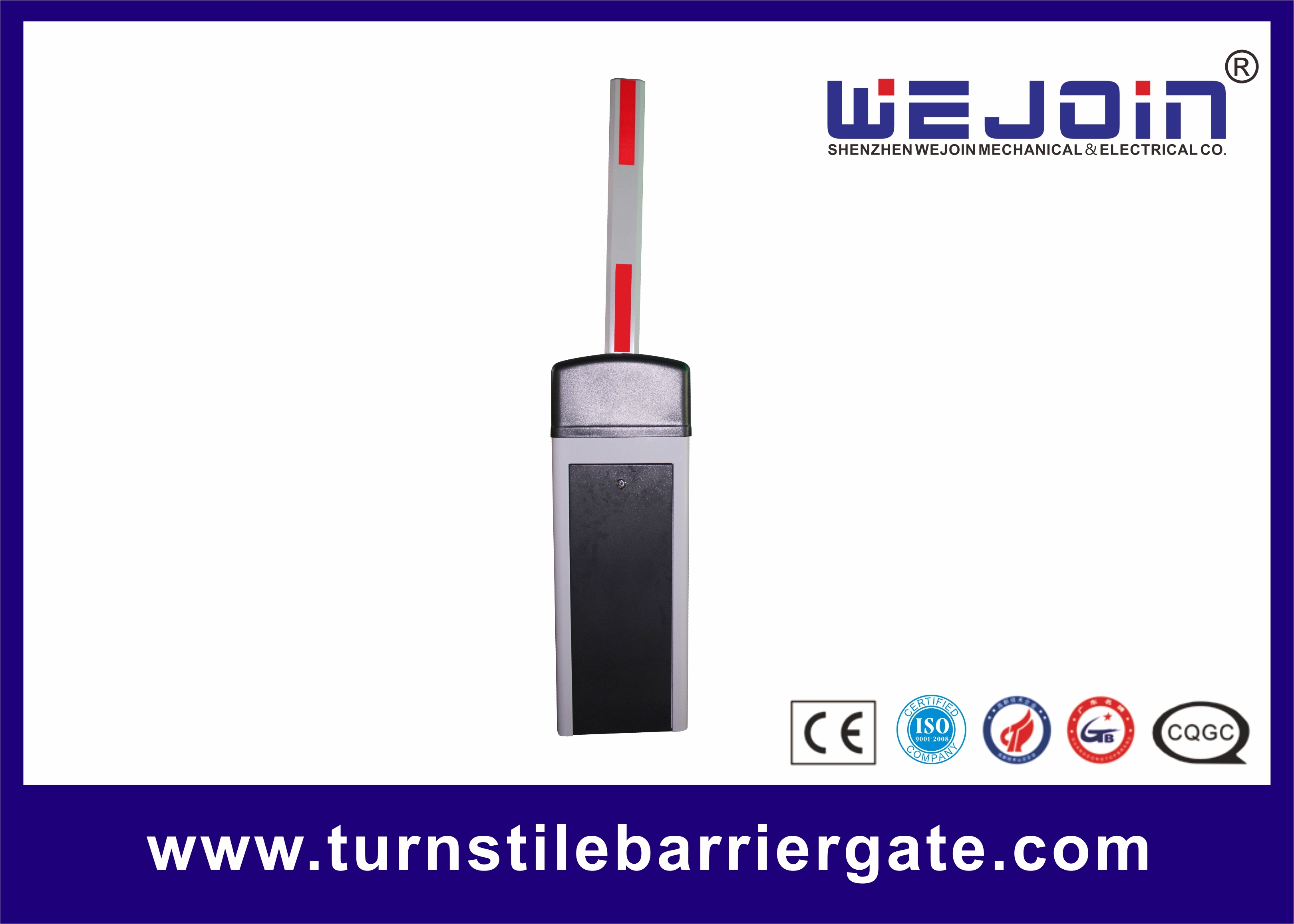

DC24V 10A Power Supply 6m Straight Boom Barrier Gate with RS485 Interface
Parking Barrier Gate Functional Features
1. DC frequency conversion motor drive, the use of connecting rod transmission mechanism, balance spring, stable and reliable operation, motor life of up to 4.5 million times or more, spring life of up to 500,000 times.
2. The whole series is equipped with the function of rebound in case of obstruction as standard, the barrier gate arm will return automatically in case of obstruction in the process of descending.
3. Support external radar, coil, infrared anti-smash function, built-in DC 12V power supply output, can power supply for external radar.
4. support RS485 communication or RS485 folio online.
5. optional bluetooth module, convenient to debug anti-barrier door through small program.
6. large LCD display, Chinese visualization menu, convenient for function selection and debugging. 7. Left and right are interchangeable.
8. 1.5~6 seconds adjustable speed of opening and closing.
Barrier Gate Packing List
|
Name
|
Specification
|
Quantity
|
Unit
|
Application
|
|
Screws, Nuts, Flat Pad
|
M12*70
|
2
|
sets
|
Fixing the boom
|
|
Boom Fixing Bar
|
|
1
|
pcs
|
Fixing the boom
|
|
Boom Holder Plastic Cover
|
|
1
|
sets
|
Optional
|
|
Cabinet Fixing Bar
|
|
2
|
pcs
|
Fixing the cabinet
|
|
Expansion Screws
|
M16*150
|
4
|
sets
|
Fixing the cabinet
|
|
Support Post
|
|
1
|
pc
|
Optional
|
|
Radio Emitter
|
|
1
|
pcs
|
Optional
|
|
Keys
|
|
2
|
pcs
|
For the cabinet door
|
|
Remote Controller
|
|
2
|
pcs
|
|
|
Manual
|
|
1
|
pcs
|
|
Wire Control Interface
This interface is available for parking system, also available for external controller to control barrier gate.
UP: Short circuit “UP” and “GND”
Down: Short circuit “Down” and “GND”
Stop: Short circuit “Stop” and “GND”
Valid time of loop detector signal
In the process of opening or up limit position, the duration time of the loop detector signal needs to exceed the setting time, and the auto-closing action will be executed after the loop detector signal disappears, avoiding that the loop detector signal is too short and triggers the auto-closing action to hit the vehicles. The default time is 200ms. Range: 100ms-900ms.
